Description:
H series gear units adopt currency layout and may transform into special reducer according to customer's requirement.
1. The housing of one size can realize parallel shaftmodes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.
2. Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.
3. Input mode : motor connected flange ,shaft input.
4. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.
5. Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.

Available Versions:

Transmission stage	Ratio(i)	Models
H1	1.25 - 5.6	H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19
H2	6.3 - 28	H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15, H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
H3	25 - 112	H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
H4	90 - 450	H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26

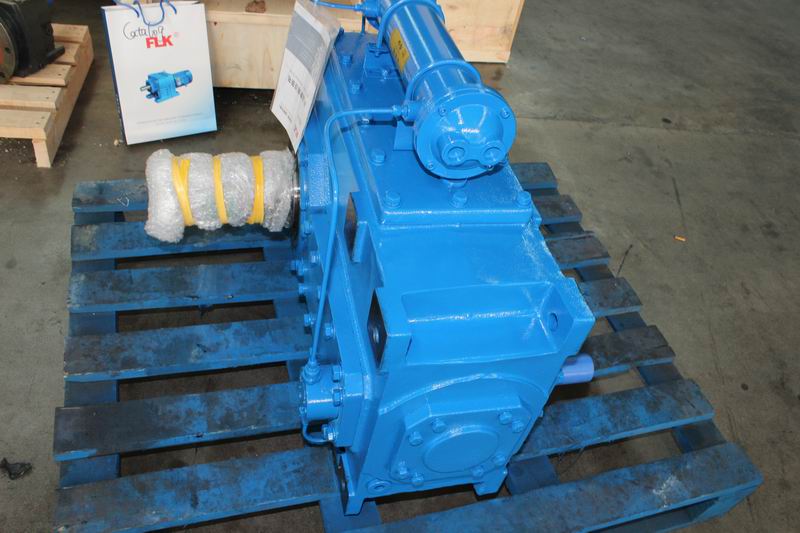

H3SH6-40-A Parallel Shaft Helical Gearbox Pictures:
